The Impact of Mechanical Measurements on High-Energy Physics Accelerators

State-of-the-art in mechanical measurements drive the power and reliability of high-energy accelerators, contributing to optimal performance and groundbreaking discoveries.

High Energy Colliders Magnets

Stress Management in Superconducting Coils

Get a full characterization of your site prior to sensitive equipment installation according to standard (VC Curves)

PROBLEMS

Due to the complex behaviour of superconducting materials, simulations are very challenging. An inadequate stress management can lead to insulation failure, conductor movement, or cracks, increasing the risk of quenching and mechanical instability.

SOLUTIONS

Our laboratory proposes multi-technique tailored advanced testing solutions to extract relevant data to readily benchmark your FEA simulations

Benefits

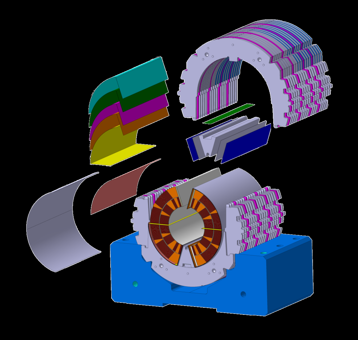

Using short magnet mockups with increasing complexity to benchmark FEA simulations accelerates the design process by identifying issues early. This iterative approach helps refine material properties, boundary conditions, and stress analysis, preventing costly mistakes in later stages and ensuring a more efficient, reliable, and optimized final magnet design.

01
Real-World simulation and validation

Testing under real-world loading conditions to ensure prototypes perform as expected. Correlation of test data with computational models for higher predictive accuracy.

02
Customized & Scalable Testing Programs

Tailored testing solutions to match specific tour project engineering problems. Scalable capabilities to provide support during the whole project lifecycle.

03
Material & Component Optimization

Refine material selection and component design for enhanced durability and performance. Identify failure points and improvement areas before full-scale production.

04
Trusted Expertise

Experienced engineers and technicians specializing in mechanical behaviour analysis. Compliance with industry standards (ASTM, ISO, etc.) for reliable results.

05
Cutting-Edge Capabilities

Advanced testing methods, including strain gauges, digital image correlation (DIC), and universal testing machines. Customizable test setups tailored to unique prototype requirements.
